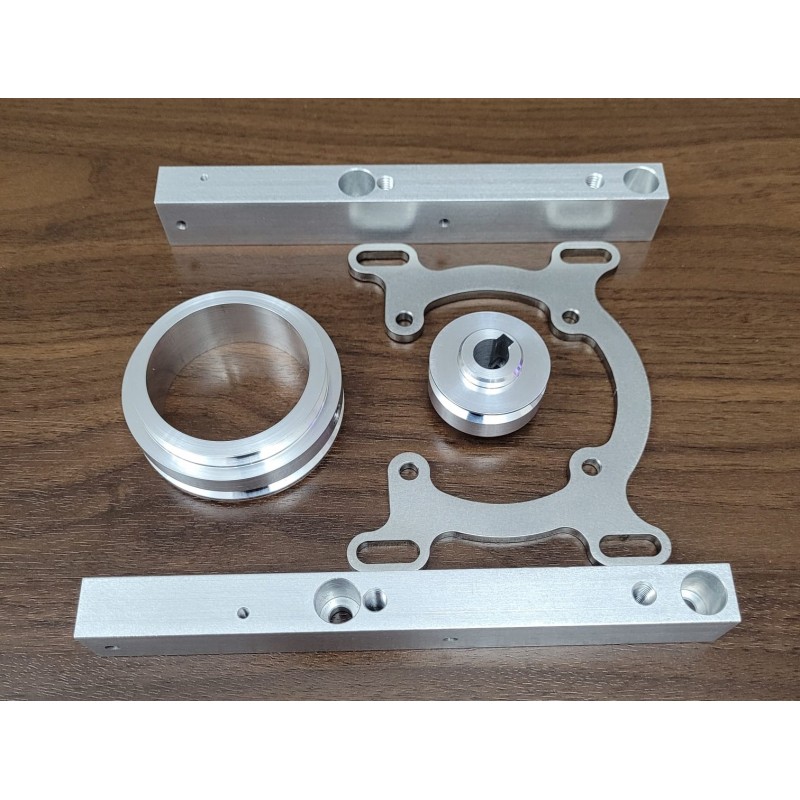

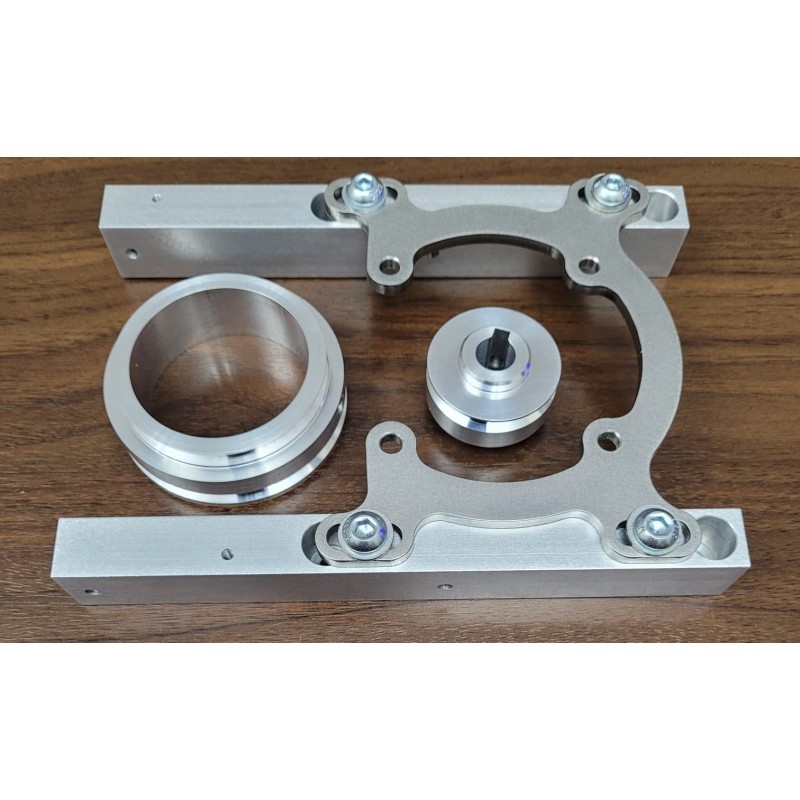

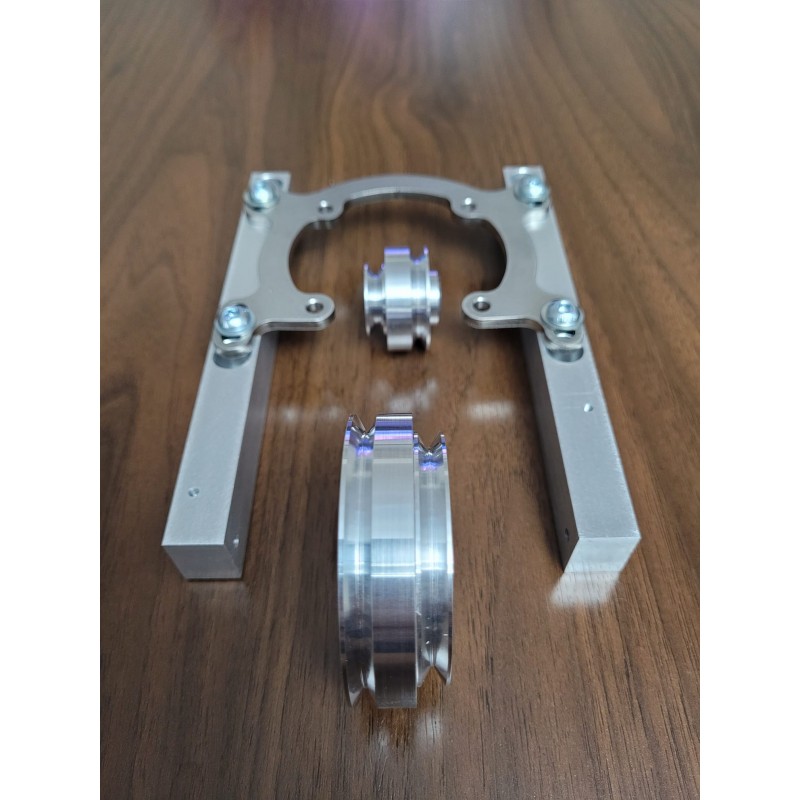

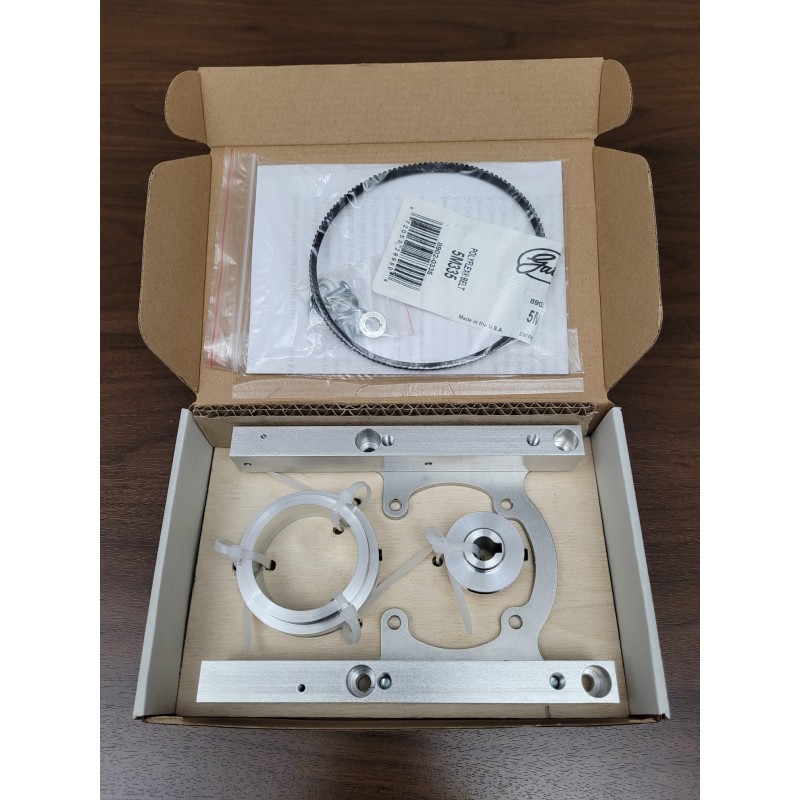

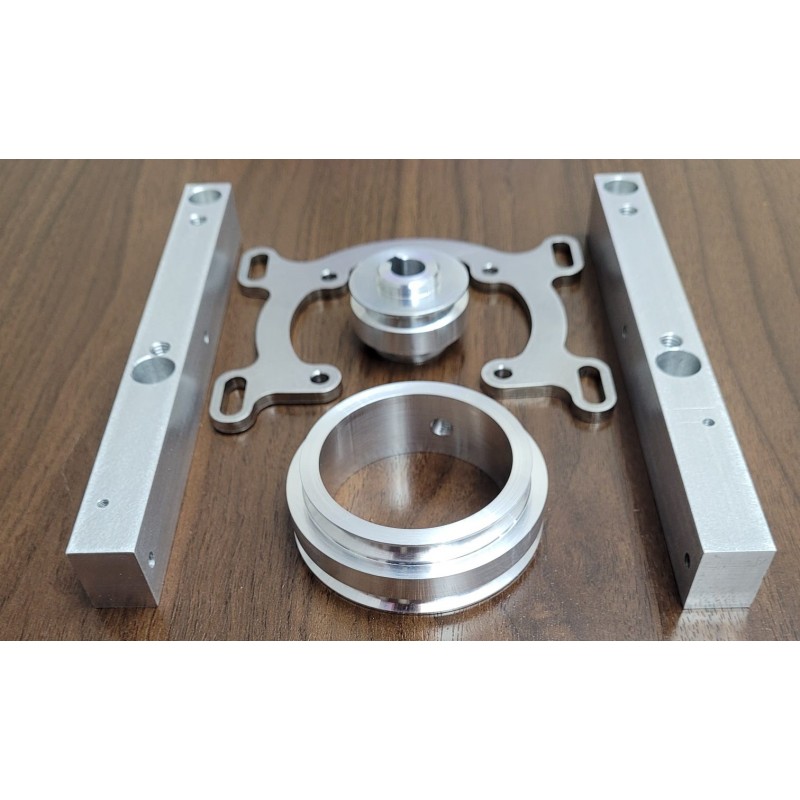

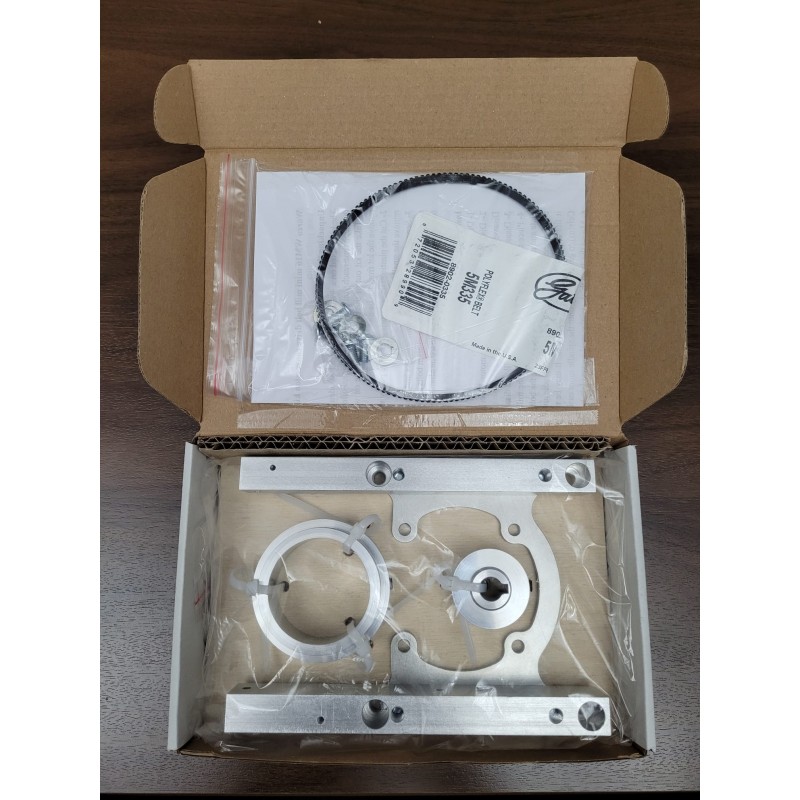

Warco WM16 mill belt drive conversion kit

This product is currently out of stock and will be manufactured upon pre-order. No payment is required during the pre-order process. You will be notified when your order is ready for shipment, at which point payment will be requested. You can cancel your pre-order at any time before it is shipped.

For the estimated shipping date, please contact us via the contact form.
You can select your local currency using the button in the top-left corner of the page.

Best belt selection and super precision pulley belt bearing surface.
Completely handmade, custom manufacturing.
Private production to the customer for different Warco WM16 model mill (enough to contacts for it).
Amicably unlimited support for many years.

And.., hundreds of customer experience.

- Super precision aluminum pulleys.
- Original keyways on the motor pulley.
- After the conversion, the RPM reader continues to be used.
- Special Polyurethane 60 degree V belt for small pulleys. Minimum flection resistance, minimum powerloss, maximum belt life. Polyurethane 60 degree V belts performs appropriate and best results for small size pulleys. Cloth-coated or rubber belts are not suitable for small pulleys. Please consider this at your product selection.

- More lightweight and aesthetic, higher durability.
- Wide sliding mechanism for a easy mountage.

- Easy installation in a short time (approximately 20 minutes).

- Moreover, without making permanent changes to machine.
- Pulley rotation ratio is low drive speed 1/2.58, high drive speed 1/1.16 (approximately). It is possible to manufacture pulleys with different conversion ratios. For this, just contact us.

Possible to see the shipping options of product, which was added to basket, before pre order creating. Do not need register for it. If the shipping option does not appear for your country, please let me know. As soon as possible to be included shipping option for your country and you will be inform.

DELIVERY TIME: Expedited delivery by DHL, UPS, FedEx Express. Delivery within 3-5 business days to worldwide.

If there is no any shipping options for your country, please contact me.

This belt drive fits the following mills:

Warco WM16

PLEASE NOTE: Different dimensions for some brands have been given described below. Please check them, before giving order. The interval between motor mounting holes on motor mounting plate is 52 mm (square shape, interval between holes from center to center). If you will check them it will be better. If you will inform me about different measurements, parts in appropriate sizes will be manufactured and send.

The small pulley has a 10 mm bore with 4 mm keyway. The large pulley has a 45 mm bore. If your shafts don’t your match these values. Then this belt drive will not fit your mill. If your machines is different dimension, Or if you need a different pulley for the spindle speed you want, please let me know dimension. I can produce suitable kit for you.
